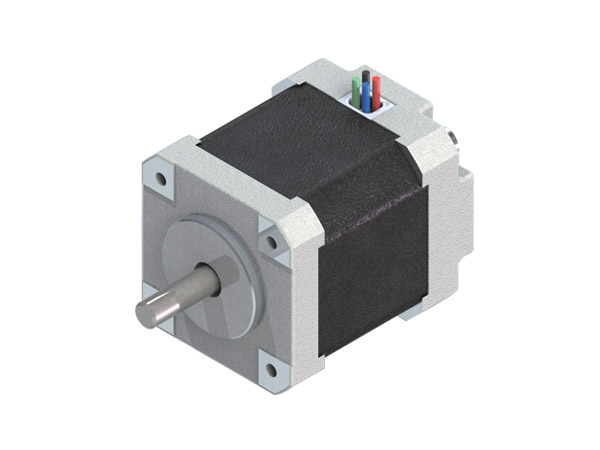

35H2F Series stepping motor
Stepping Motor

步距角
Step Angle
1.8°
绝缘电阻
Insulation Resistancce
500V DC 100MΩ Min
绝缘强度
Dielectric Strength
500V AC 50Hz 2mA 1Minute
环境温度
Ambient Temperature
-20~+40℃
温升
Temperature Rise
80K Max
绝缘等级
Insulation Class
B

产品性能参数(Electrical specification):

35H2F 双极性

型号
Model

机身长度
Fuselage Length

额定电压
Rated voltage

额定电流
Rated Current

绕组电参数

静力矩
Static moment

转子惯量
Rotor Inertia

电机质量
Motor quality

@20℃
Typ.
mm
V
Amps
Ohms
mH
N.m
oz-in
g.cm2
oz-in2
Kg
Lbs

35H2F27-054

27

4.25

0.5

8.5

8.0

0.14

20

12

0.17

0.15

0.33

35H2F27-104

4.5

1.0

4.5

4.0

0.14

20

12

0.17

0.15

0.33

35H2F27-124

3.48

1.2

2.9

2.5

0.14

20

12

0.17

0.15

0.33
35H2F27-154
3.0
1.5
2.0
1.8
0.14
20
12
0.17
0.15
0.33

35H2F36-054

36

5.0

0.5

10

24

0.22

32

20

0.11

0.21

0.46

35H2F36-104

3.0

1.0

3.0

5.3

0.22

32

20

0.11

0.21

0.46
35H2F36-124
3.36
1.2
2.8
3.0
0.22
32
20
0.11
0.21
0.46

35H2F36-154

2.7

1.5

1.8

2.2

0.22

32

20

0.11

0.21

0.46

35H2F45-054

44

7.5

0.5

15

28

0.37

53

30

0.17

0.24

0.53

35H2F45-104

4.3

1.0

4.3

7.0

0.37

53

30

0.17

0.24

0.53
35H2F45-154
4.35
1.5
2.9
4.5
0.37
53
30
0.17
0.24
0.53

35H2F45-204

3.2

2.0

1.6

2.6

0.37

53

30

0.17

0.24

0.53

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement


外形尺寸(Dimension):

运行矩频特性(Torque-frequency Characteristic):

注意:装配时,须保证电机轴和负载轴的同心,严禁敲打,以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
