60H2F Series stepping motor

Stepping Motor

步距角 Step Angle	1.8°
绝缘电阻 Insulation Resistancce	500V DC 100MΩ Min
绝缘强度 Dielectric Strength	500V AC 50Hz 2mA 1Minute
环境温度 Ambient Temperature	-20~+40℃
温升 Temperature Rise	80K Max
绝缘等级 Insulation Class	B

产品性能参数（Electrical specification）：

60H2F 双极性

型号 Model	机身长度 Fuselage Length	额定电压 Rated voltage	额定电流 Rated Current	绕组电参数		静力矩 Static moment		转子惯量 Rotor Inertia		电机质量 Motor quality
	机身长度 Fuselage Length	额定电压 Rated voltage	额定电流 Rated Current	@20℃	Typ.	静力矩 Static moment		转子惯量 Rotor Inertia		电机质量 Motor quality
	mm	V	Amps	Ohms	mH	N.m	oz-in	g.cm2	oz-in2	Kg	Lbs
60H2F46-154	46	4.8	1.5	3.2	7.1	1.2	170	280	1.5	0.6	1.3
60H2F46-204		3.4	2.0	1.7	3.9	1.2	170	280	1.5	0.6	1.3
60H2F46-254		3.0	2.5	1.2	2.7	1.2	170	280	1.5	0.6	1.3
60H2F46-304		2.1	3.0	0.7	1.6	1.2	170	280	1.5	0.6	1.3
60H2F56-204	54	4.2	2.0	2.1	6.8	1.8	255	450	2.5	0.83	1.8
60H2F56-254		3.75	2.5	1.5	4.8	1.8	255	450	2.5	0.83	1.8
60H2F56-304		2.7	3.0	0.9	2.8	1.8	255	450	2.5	0.83	1.8
60H2F56-404		2.0	4.0	0.5	1.4	1.8	255	450	2.5	0.83	1.8
60H2F67-204	65	4.4	2.0	2.2	6.0	2.3	326	560	3.1	1.05	2.3
60H2F67-254		4.25	2.5	1.7	4.5	2.4	340	560	3.1	1.05	2.3
60H2F67-304		3.3	3.0	1.1	3.0	2.3	326	560	3.1	1.05	2.3
60H2F67-404		2.4	4.0	0.6	1.5	2.4	340	560	3.1	1.05	2.3
60H2F87-204	86	5.6	2.0	2.8	9.2	3.2	455	900	4.9	1.4	3.1
60H2F87-254		5.0	2.5	2.0	6.9	3.2	455	900	4.9	1.4	3.1
60H2F87-304		3.6	3.0	1.2	4.1	3.2	455	900	4.9	1.4	3.1
60H2F87-404		2.4	4.0	0.6	2.0	3.2	455	900	4.9	1.4	3.1

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

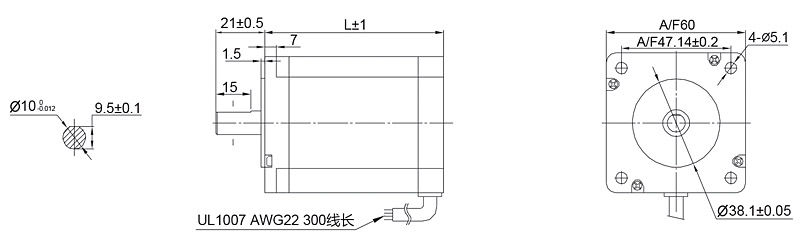

外形尺寸（Dimension）：

运行矩频特性（Torque-frequency Characteristic）：

注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
