86H2F Series stepping motor

Stepping Motor

步距角 Step Angle	1.8°
绝缘电阻 Insulation Resistancce	500V DC 100MΩ Min
绝缘强度 Dielectric Strength	1000V AC 50Hz 2mA 1Minute
环境温度 Ambient Temperature	-20~+40℃
温升 Temperature Rise	80K Max
绝缘等级 Insulation Class	B

产品性能参数（Electrical specification）：

86H2F 双极性

型号 Model	机身长度 Fuselage Length	额定电压 Rated voltage	额定电流 Rated Current	绕组电参数		静力矩 Static moment		转子惯量 Rotor Inertia		电机质量 Motor quality
	机身长度 Fuselage Length	额定电压 Rated voltage	额定电流 Rated Current	@20℃	Typ.	静力矩 Static moment		转子惯量 Rotor Inertia		电机质量 Motor quality
	mm	V	Amps	Ohms	mH	N.m	oz-in	g.cm2	oz-in2	Kg	Lbs
86H2F67-354	67	3.36	3.5	0.96	9.5	3.8	540	915	5.0	1.6	3.5
86H2F67-504		2.4	5.0	0.48	4.5	3.8	540	915	5.0	1.6	3.5
86H2F67-704		1.82	7.0	0.26	2.4	3.8	540	915	5.0	1.6	3.5
86H2F67-A04		1.4	10	0.14	1.2	3.8	540	915	5.0	1.6	3.5
86H2F97-354	97	4.69	3.5	1.34	16	7.2	1000	1480	8.1	2.7	6.0
86H2F97-504		3.05	5.0	0.61	8	7.2	1000	1480	8.1	2.7	6.0
86H2F97-704		2.52	7.0	0.36	4	7.2	1000	1480	8.1	2.7	6.0
86H2F97-A04		1.9	10	0.19	2	7.2	1000	1480	8.1	2.7	6.0
86H2F126-354	126	5.25	3.5	1.5	20	9.8	1400	2200	12	3.8	8.4
86H2F126-504		3.6	5.0	0.72	9.5	9.8	1400	2200	12	3.8	8.4
86H2F126-704		2.66	7.0	0.38	4.5	9.8	1400	2200	12	3.8	8.4
86H2F126-A04		2.2	10	0.22	2.3	9.8	1400	2200	12	3.8	8.4
86H2F157-354	157	6.3	3.5	1.8	25	13.2	1869	3740	17	4.9	11
86H2F157-504		4.5	5.0	0.9	12	13.2	1869	3740	17	4.9	11
86H2F157-704		3.29	7.0	0.47	6.3	13.2	1869	3740	17	4.9	11
86H2F157-A04		2.4	10	0.24	2.9	13.2	1869	3740	17	4.9	11

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

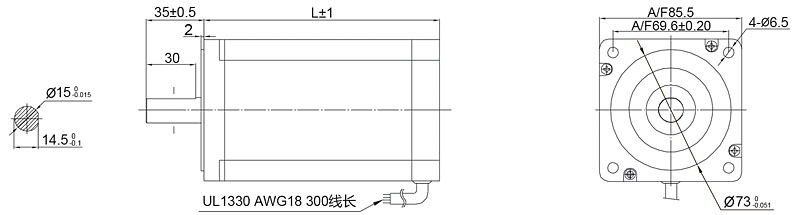

外形尺寸（Dimension）：

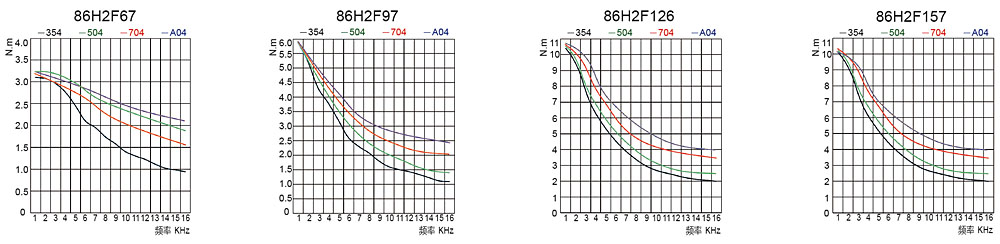

运行矩频特性（Torque-frequency Characteristic）：

注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
