86H3F Series stepping motor
Stepping Motor
| 步距角 Step Angle | 1.2° |
| 绝缘电阻 Insulation Resistancce | 500V DC 100MΩ Min |
| 绝缘强度 Dielectric Strength | 1000V AC 50Hz 2mA 1Minute |
| 环境温度 Ambient Temperature | -20~+40℃ |
| 温升 Temperature Rise | 80K Max |
| 绝缘等级 Insulation Class | B |
产品性能参数（Electrical specification）：
型号 | 机身长度 | 额定电压 | 额定电流 | 绕组电参数 | 静力矩 Static moment | 转子惯量 | 电机质量 | ||||
@20℃ | Typ. | ||||||||||
mm | V | Amps | Ohms | mH | N.m | oz-in | g.cm2 | oz-in2 | Kg | Lbs | |
86H3F67-303 | 67 | 6.9 | 3.0 | 2.3 | 8.4 | 2.8 | 400 | 1100 | 6 | 1.6 | 3.5 |
86H3F67-503 | 4.0 | 5.0 | 0.8 | 2.4 | 2.8 | 400 | 1100 | 6 | 1.6 | 3.5 | |
86H3F97-303 | 97 | 7.5 | 3.0 | 2.5 | 12 | 5.3 | 750 | 1850 | 10 | 2.7 | 6 |
86H3F97-503 | 4.0 | 5.0 | 0.8 | 3.2 | 5.0 | 710 | 1850 | 10 | 2.7 | 6 | |
86H3F126-303 | 126 | 9.9 | 3.0 | 3.3 | 17 | 6.8 | 960 | 2750 | 15 | 3.8 | 8.4 |
86H3F126-503 | 5.0 | 5.0 | 1.0 | 4.8 | 6.8 | 960 | 2750 | 15 | 3.8 | 8.4 | |
以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

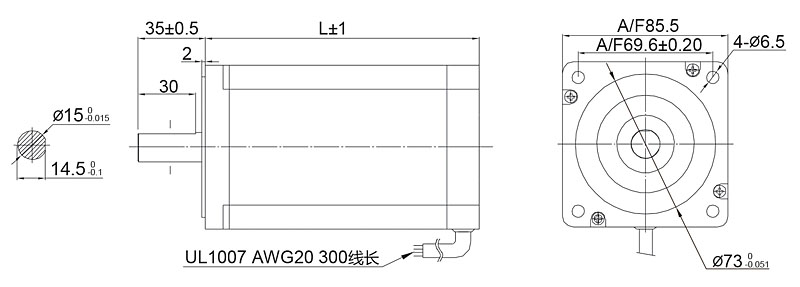

外形尺寸（Dimension）：

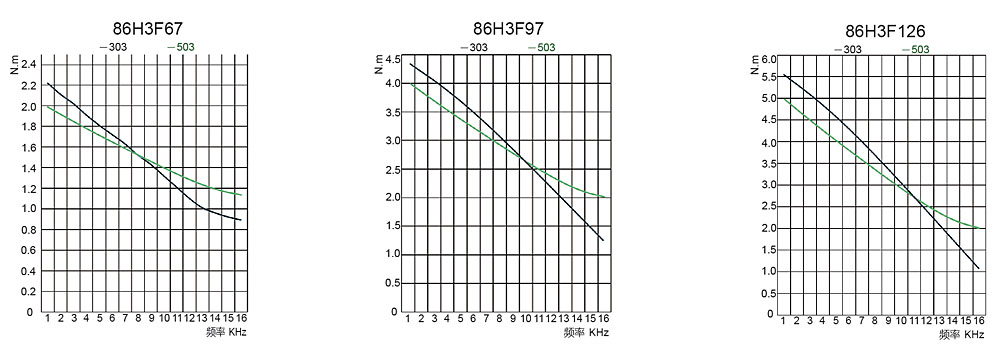

运行矩频特性（Torque-frequency Characteristic）：
注意：装配时，须保证电机轴和负载轴的同心，严禁敲打，以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
