60H2F系列闭环步进电机
闭环步进电机

步距角
Step Angle
1.8°
绝缘电阻
Insulation Resistancce
500V DC 100MΩ Min
绝缘强度
Dielectric Strength
500V AC 50Hz 2mA 1Minute
环境温度
Ambient Temperature
-20~+40℃
温升
Temperature Rise
80K Max
绝缘等级
Insulation Class
B

产品性能参数(Electrical specification):

型号
Model

机身长度
Fuselage Length

额定电压
Rated voltage

额定电流
Rated Current

绕组电参数

静力矩
Static moment

转子惯量
Rotor Inertia

电机质量
Motor quality

@20℃
Typ.
mm
V
Amps
Ohms
mH
N.m
oz-in
g.cm2
oz-in2
Kg
Lbs

60H2F77-E

77

4.5

5.0

0.9

2.6

1.80

255

450

2.5

0.83

1.8

60H2F101-E

101

5.5

5.0

1.1

2.4

2.80

397

580

3.2

1.05

2.3

60H2F111-E

110

6.0

5.0

1.2

2.2

3.30

468

900

4.9

1.40

3.1

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

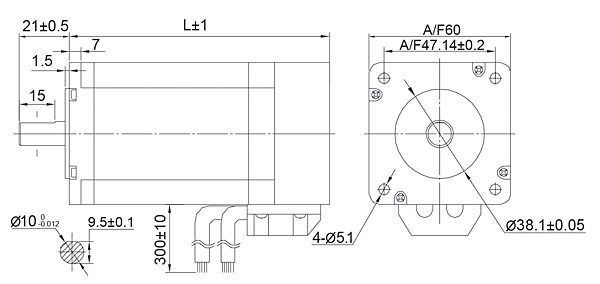

外形尺寸(Dimension):

接线图(Wiring Diagram):

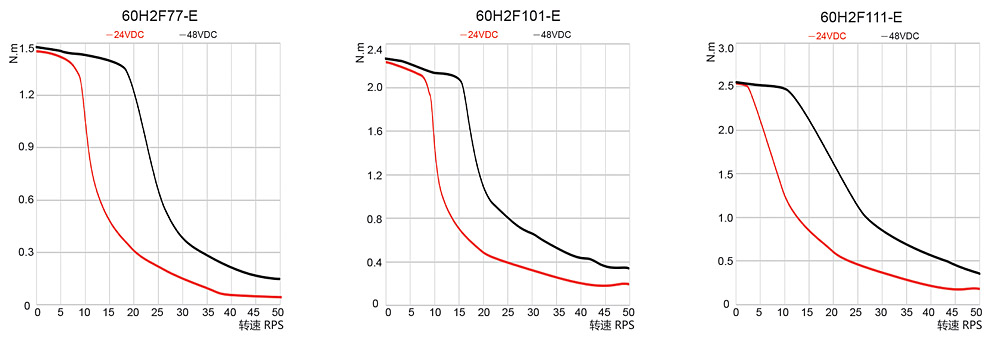

运行矩频特性(Torque-frequency Characteristic):

注意:装配时,须保证电机轴和负载轴的同心,严禁敲打,以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
