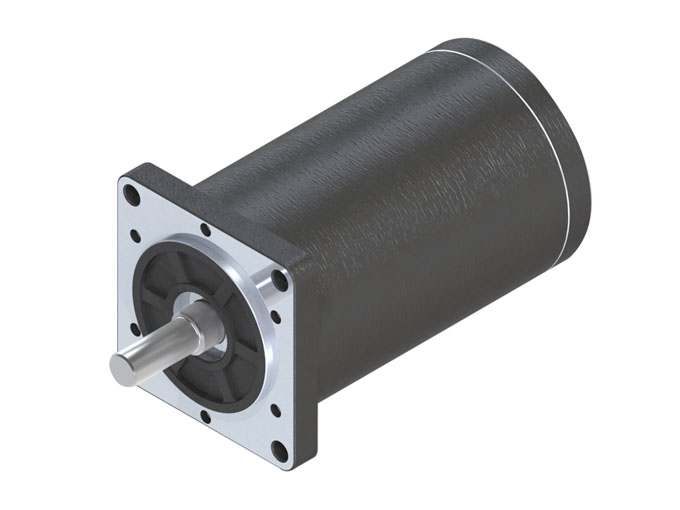

130BYG350系列步进电机
步进电机

步距角
Step Angle
1.2°
绝缘电阻
Insulation Resistancce
500V DC 100MΩ Min
绝缘强度
Dielectric Strength
1000V AC 50Hz 2mA 1Minute
环境温度
Ambient Temperature
-20~+40℃
温升
Temperature Rise
80K Max
绝缘等级
Insulation Class
B

产品性能参数(Electrical specification):

型号
Model

运行电压
Operating Voltage

额定电流
Rated Current

电阻
Resistance

电感
Inductance

保持转矩
Holding Torque

空载频率
Noload Frequency

起动频率
Starting Frequency

重量
Weight

长度
Length

VDC
A
Ω
mH
N.m
Hz
Hz
kg
mm

130BYG350

80~325

5

0.68

9.2

25

20000

2600

13.3

173

130BYG350A

80~325

5

0.94

14.8

30

20000

2500

17.8

229

130BYG350BH

80~325

3

1.71

23.6

40

18000

2500

20

257

130BYG350C

80~325

6

1.18

19.4

50

18000

2500

22.5

285

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

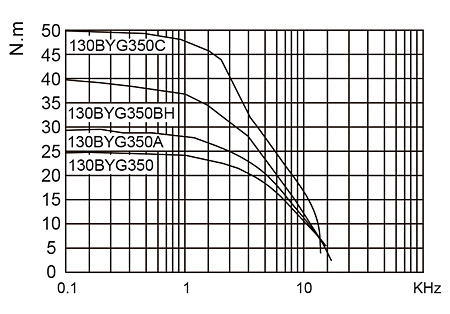

运行矩频特性(Torque-frequency Characteristic):

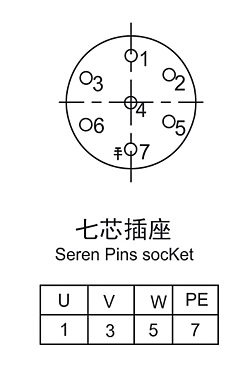

接线图(Wiring Diagram):

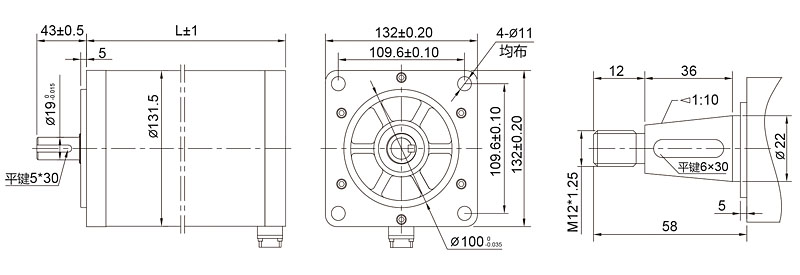

外形尺寸(Dimension):

注意:装配时,须保证电机轴和负载轴的同心,严禁敲打,以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
