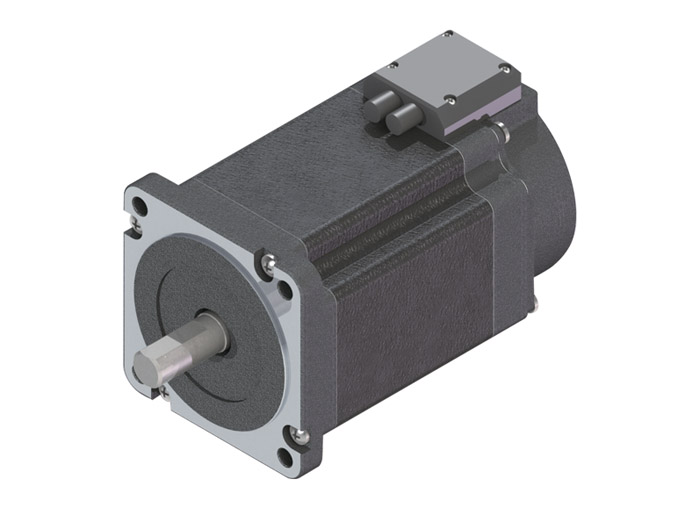

86H2F系列闭环步进电机
闭环步进电机

步距角
Step Angle
1.8°
绝缘电阻
Insulation Resistancce
500V DC 100MΩ Min
绝缘强度
Dielectric Strength
900V AC 50Hz 2mA 1Minute
环境温度
Ambient Temperature
-20~+40℃
温升
Temperature Rise
80K Max
绝缘等级
Insulation Class
B

产品性能参数(Electrical specification):

型号
Model

机身长度
Fuselage Length

额定电压
Rated voltage

额定电流
Rated Current

绕组电参数

静力矩
Static moment

转子惯量
Rotor Inertia

电机质量
Motor quality

@20℃
Typ.
mm
V
Amps
Ohms
mH
N.m
oz-in
g.cm2
oz-in2
Kg
Lbs

86H2F89-E

89

3.0

6.0

0.5

4.0

4.0

567

915

5.0

1.6

3.5

86H2F118-E

118

3.6

6.0

0.6

6.8

6.8

963

1480

8.1

2.7

6.0

86H2F147-E

147

3.6

6.0

0.6

8.0

9.8

1388

2200

12

3.8

8.4

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

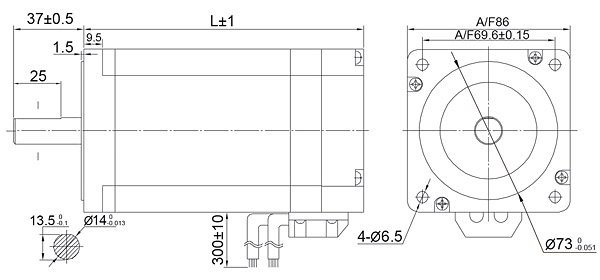

外形尺寸(Dimension):

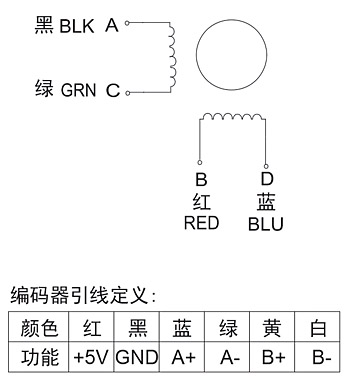

接线图(Wiring Diagram):

运行矩频特性(Torque-frequency Characteristic):

注意:装配时,须保证电机轴和负载轴的同心,严禁敲打,以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
